Product description
Digital cutting machine is a new type chopping machine used in the latest digital technology development. This machine is mainly used for cutting all kinds of stems and leafy soft vegetables, and slicing vegetables or slender vegetables. It is an ideal processing equipment for chopping fresh vegetables and dehydrated vegetables in vegetable processing industry.
Multifunctional Vegetable Cutting Machine
The CQ-2 two-head vegetable cutting machine is suitable for cutting stem and leaf vegetables (celery, leek, spinach, green onion) into sections, cutting cucumber, carrot, etc. into slices and cutting melon, potato, etc. into shreds, slices and cubes.
Model | Dimension
(mm) | Capacity | Power
(KW) |
CQ-2 | 1200*550*1200mm | 1000 kg/h | 2.25kw |
Cutting Size | Slice: 2.5-3 mm
Shred: 3 mm
Cube: 15*15*15 mm (10*10*10 mm Can be customized.)
Section: 1-60 mm Adjustable |
TB50 Vegetable and Fruit Slicing Machine
The vegetable and fruit slicing machine is used for cutting various spherical and columnar vegetables and fruits into round or oval slices of uniform shape and thickness.
Model | Dimension
(mm) | Weight
(KG) | Capacity | Power
(KW) | Cutting Size |
TB50 | 1000*670*1020mm | 120 | 500-1000kg/h | 0.75 | 1-10mm |
CQseries multipurposevegetable and fruit cutting machine
CQseries multipurposevegetable and fruit cutting machine are widely used for cutting and processing various roots, stems, leafy vegetables, kelp and bean products, such as cucumbers, radishes, bananas, etc.
By changing different cutters, you can cut root vegetables into slices, shreds, cubes, rhombus, can also cut slender vegetables (celery, beans, etc.) into segments, and cut leafy vegetables into shreds.
Model | Dimension
(mm) | Weight
(KG) | Conveyer width | Power
(KW) | CuttingSize |
CQ660 | 900*460*740 | 100 | 217mm | 0.75 | 1-25mm |
CQ1000 | 1300*600*1050 | 175 | 318mm | 1.5 | 1-30mm |
CQ1000-B | 1300*600*1050 | 175 | 318mm | 1.5 | 1-150mm |
CQ2000 | 1400*790*1020 | 230 | 500mm | 1.5 | 1-30mm |
CQseries vegetable and fruit cutting machine is suitable forroot, stem, leaf vegetable, fruit, kelp, bean products, etc.By changing different cutters, this YQC vegetable and fruit cutting machine can cut stem and root vegetables intoshreds, sticks, cubes,cut long and thin vegetables (celery, green bean, etc.) intosectionsand cut leaf vegetables intoshreds.This YQC vegetable and fruit cutting machine is equipped with acentrifugal drum, which cuts root materials into slices first.

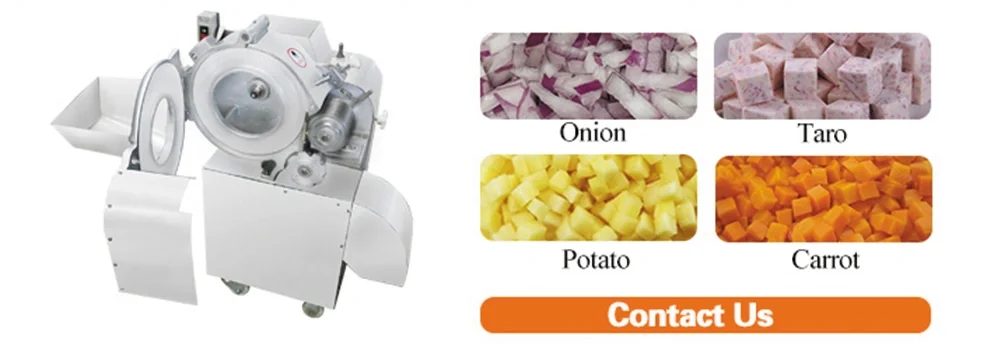

TheCQ100 vegetable dicing machine
TheCQ100 dicing machine is used for cut fruit, root vegetablesuchaspotato, carrot, onion,apple,mango, cassava, pickles, etc. into cubes or sticks.
Model | Dimension
(mm) | Weight
(KG) | Capacity | Power
(KW) | Cutting Size |
CHD100 | 560*600*1040m | 100 | 500-1000kg/h | 0.75 | 3mm-20mm |
CHD80 vegetablecutting machine
CQ80 vegetablecutting machine is mainly used for cuttingleafy vegetables(leek, lettuce,cabbage, spinach, celery, green onion, etc.)into shreds or sections and cuttingroot vegetables(carrot, cucumber, etc.)into slices.
Model | Dimension
(mm) | Weight
(KG) | Capacity | Power
(KW) | Cutting Size |
CHD80 | 1200*660*1000mm
| 155 | 200-2000kg/h | 1.1 | 1-30mm Adjustable |

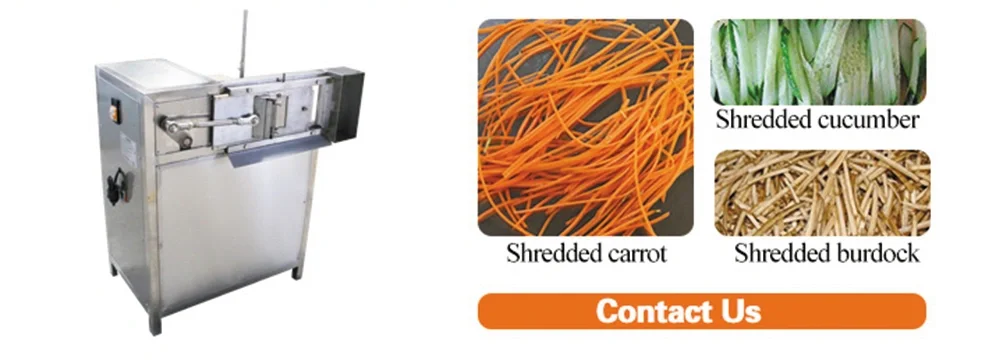

TB300 Vegetable Shredding Machine
This shredding machine is used for cuttingroot or stem vegetables like carrot, cucumber, burdock and cassava into shreds or sticks. It can cut materials into uniform length or cut materials as to their original length.
Model | Dimension | Capacity | Power |
TB300 | 1010*620*825mm | 200-300 kg/h | 1.1 Kw |
Cutting Size | Thick:1-10mm Width:1-10mm Length:20-200mm |
Our advantages
The machine is easy to operate. Turn on and off the machine withjust one click.
Main components are made of stainless steel and magnalium to guarantee long service life and corrosion resistance, meeting food safety standards.
Themachine features compound cutters, one-step forming and high forming rate.Diced materials have uniformshape and smooth cut surface.
Cutter are easy to dismantle and clean.
Streamlined outlet, conforming to the movement track of materials, prevents materials from splashing and bumping.
|
|
Series multi-purpose vegetable and fruit slicing dicing cutting machine Images
|
